Go beyond city limits and find new adventures. The new Explore E gives you the power to ride further with a powerful new motor and longer range. Smooth suspension and larger tyres make it a highly capable trekker for smooth roads, gravel or dirt.
The new SyncDrive Sport has 75Nm of torque and delivers high power, even at low speeds. The RideControl EVO colour display shows ride information including speed, distance, battery range and navigation along with heart rate and other fitness data. The controller can connect wirelessly with a smartphone to access e-mail, messaging and other apps.
KEYPERFORMANCE FACTORS
Smooth ride quality: ALUXX aluminium frameset and new SyncDrive Sport motor combine for confident, stable handling and quick acceleration on all types of roads from hills to flats.
Route finding info: RideControl EVO full colour display with on-board navigation helps riders find their way. Smartphone connectivity makes it easy to keep the battery charged.
Longer range: EnergyPak 625 battery with 625Wh of power gives riders the freedom to ride further.
| Colours | Misty Forest |
| Sizes | STA: S, DD: M, L, XL |
| Frame | ALUXX aluminium, Overdrive 1.8" - 1.5" head tube, integrated battery, integrated KSA40 kickstand mount |
| Fork | SR Suntour XCM34 LO, 100mm travel, Hydraulic Lockout, 15x110mm |

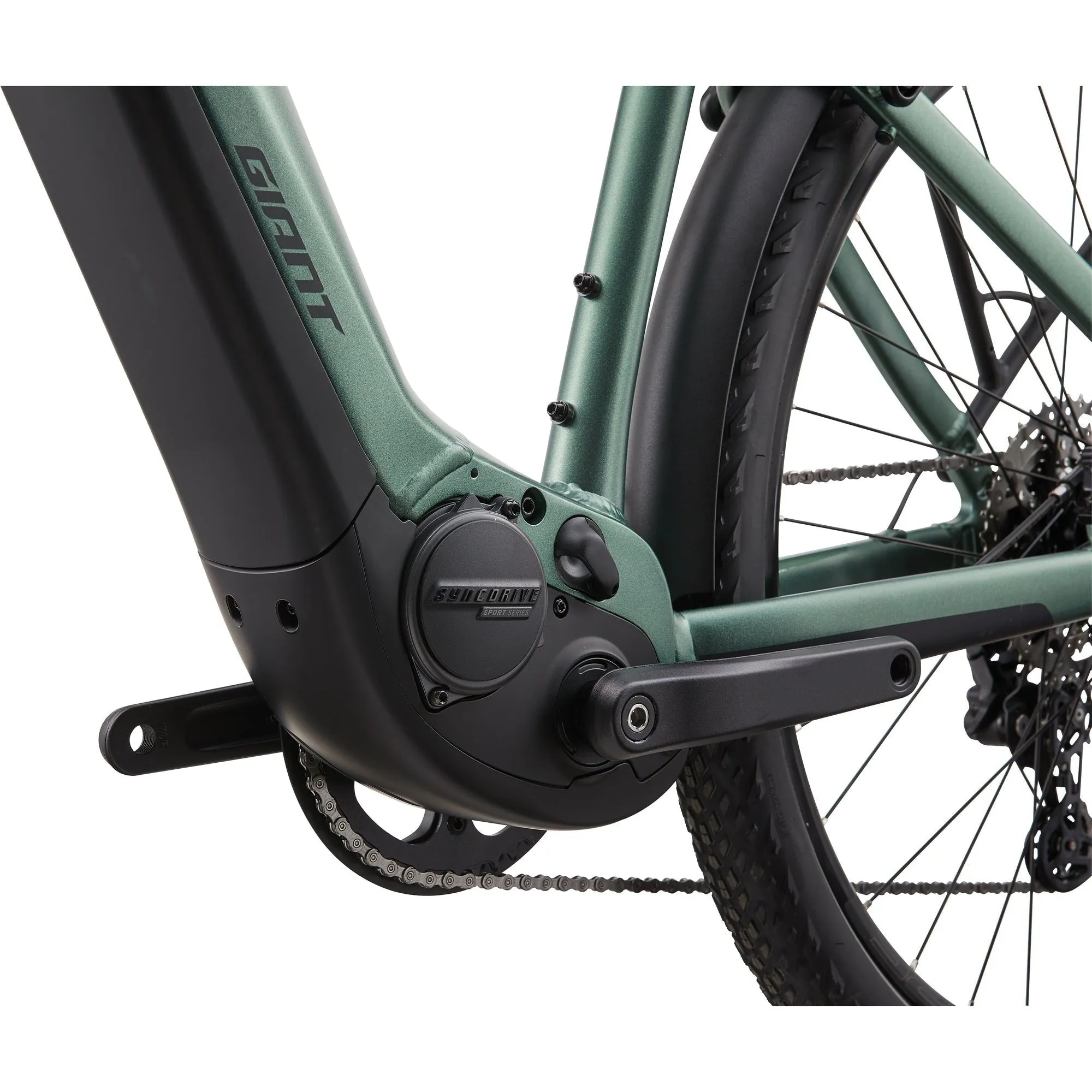

| Motor | SyncDrive Sport2, 75Nm, powered by Yamaha |
| Battery | EnergyPak Smart 625Wh EnergyPak Plus range extender compatible |
| Controls | RideControl Dash |
| Display | RideControl Dash, full colour lcd screen |
| Charger | EnergyPak 4A smart charger compact |
| Handlebar | Giant Connect Riser 31.8mm |
| Stem | Giant Contact, 8-degree |
| Grips | Giant |
| Seatpost | Giant 30.9mm, 2-bolt Micro Adjust, alloy |
| Saddle | Selle Royal Vivo Ergo Moderate |
| Pedal | Platform |
| Shifters | Shimano Deore, LinkGlide |
| Rear Derailleur | Shimano Deore LinkGlide, 10-speed, Shadow |
| Brakes | Shimano BR-MT200, hydraulic disc, (F) 180mm, (R) 180mm |
| Brake Levers | Shimano BL-MT200 |
| Cassette | Shimano LinkGlide, CS-LG400-10, 11-43T, 10-speed |
| Chain | Shimano LinkGlide, CN-LG500 |

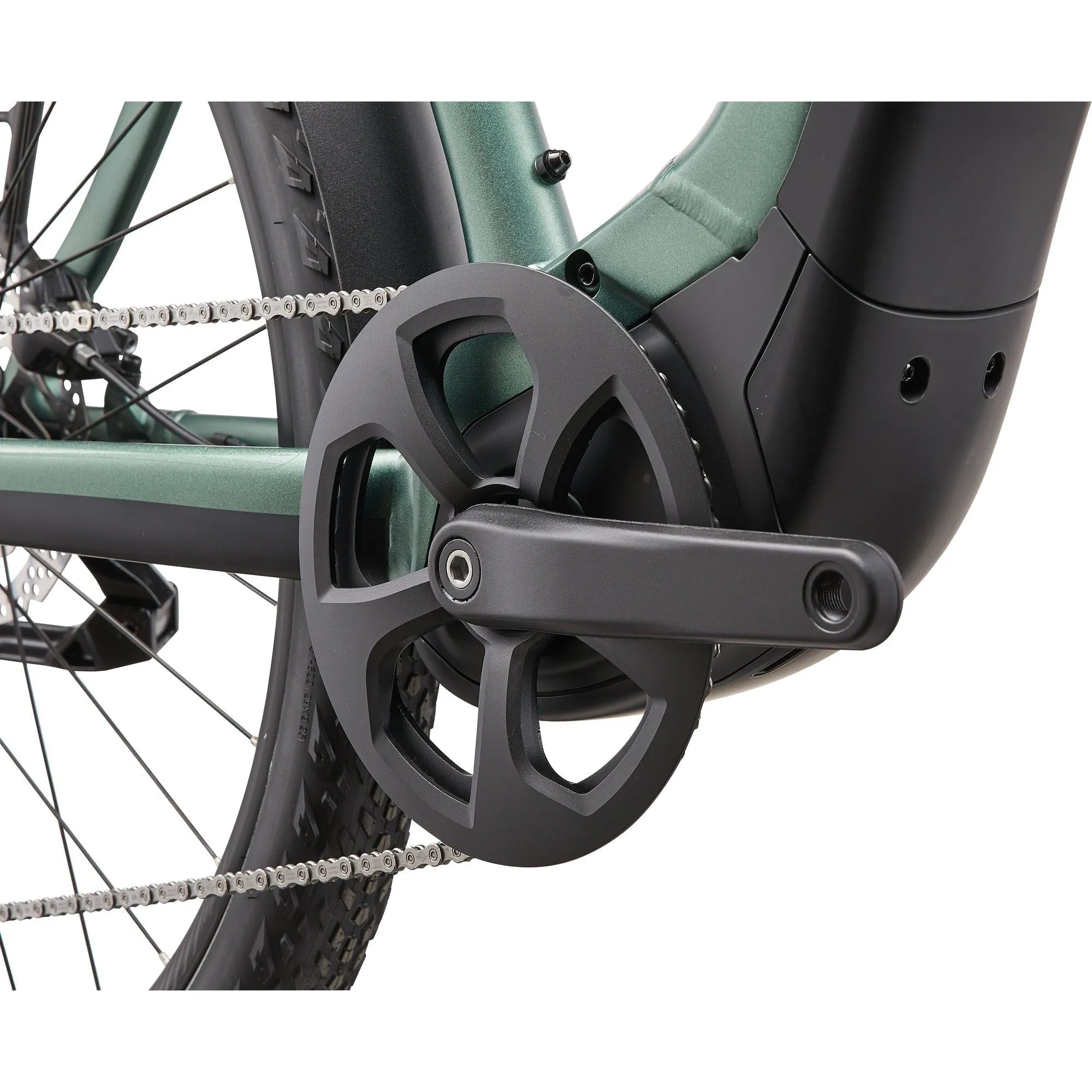

| Crankset | Forged Alloy Direct spider/chainguard 46T Steel narrow/wide chainring |
| Rims | Giant eX25, Tubeless Ready, Aluminium |
| Hubs | Giant eTracker |
| Spokes | Stainless steel, e-bike optimised |
| Tyres | Crosscut Gravel 2, 700x57c, Wire Bead, Tubeless Ready |
| Lights | Recon E HL50 StVZO [F] AXA NYX 6-12V E-bike tail light with brake sensor [R] |
| Kickstand | KSA40 direct mount kickstand |

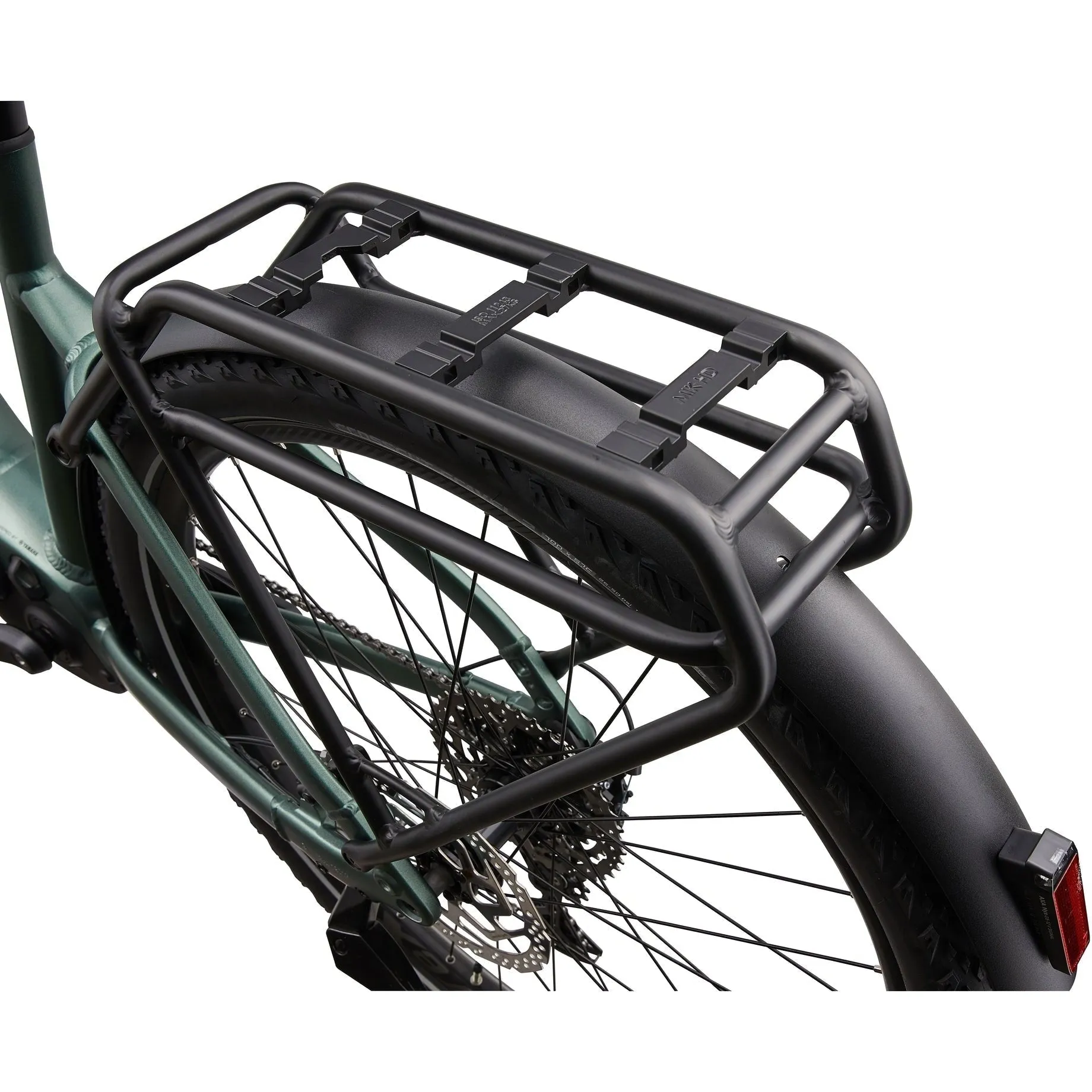

| Carrier | MIK rack. System bag & basket compatible |
| Fenders | Aluminium |
| Lock | ABUS Xplus battery lock |
