E-5 SilentFlo Laing ITT Pump used in Hot Spring, Sundance, Caldera, Watkins, Tiger River and more.
Note, you can also replace with the newer, more-efficient
It also suits many other brand spas and hot tubs. Has 3/4" barb fittings. Magnetic drive. The Laing E5 pump replaces single speed 5000 and two speed 5002 circulation pumps.
- All Caldera Spas Circulation Pumps from 2002 - Current
- SM303
- Hot Springs Models from 1986-2009
- Tiger River Models from 1986-2009 MFG #74416
- Silent Flow Circ Pump E5-NSHN2W14 ,E5-NSHNNN3W14
- LTI PN : 73379, Watkins PN: 301393
- 73379, 74427, 6641
- SilentFlo 5000
- SilentFlo 5002
- See longer list below.

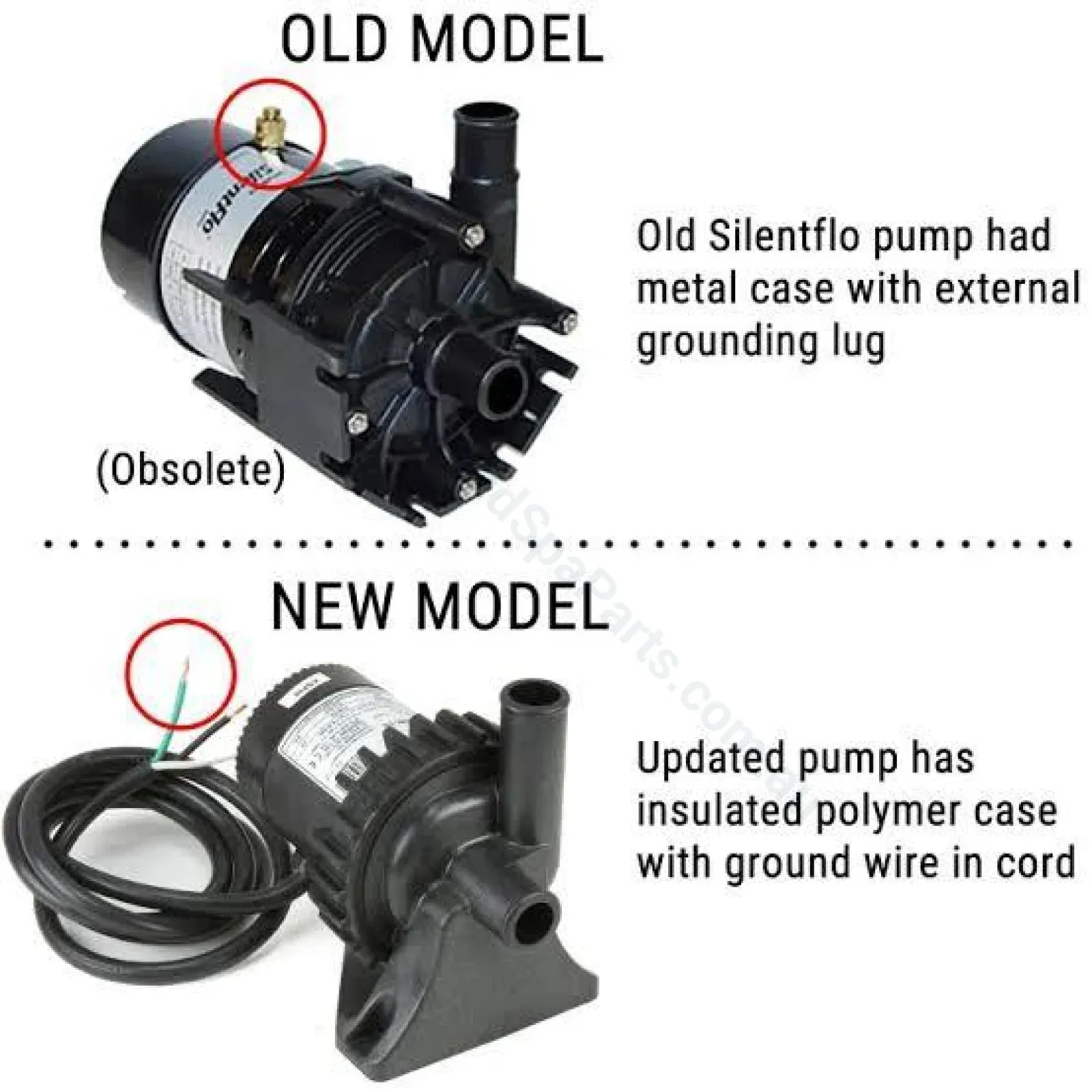

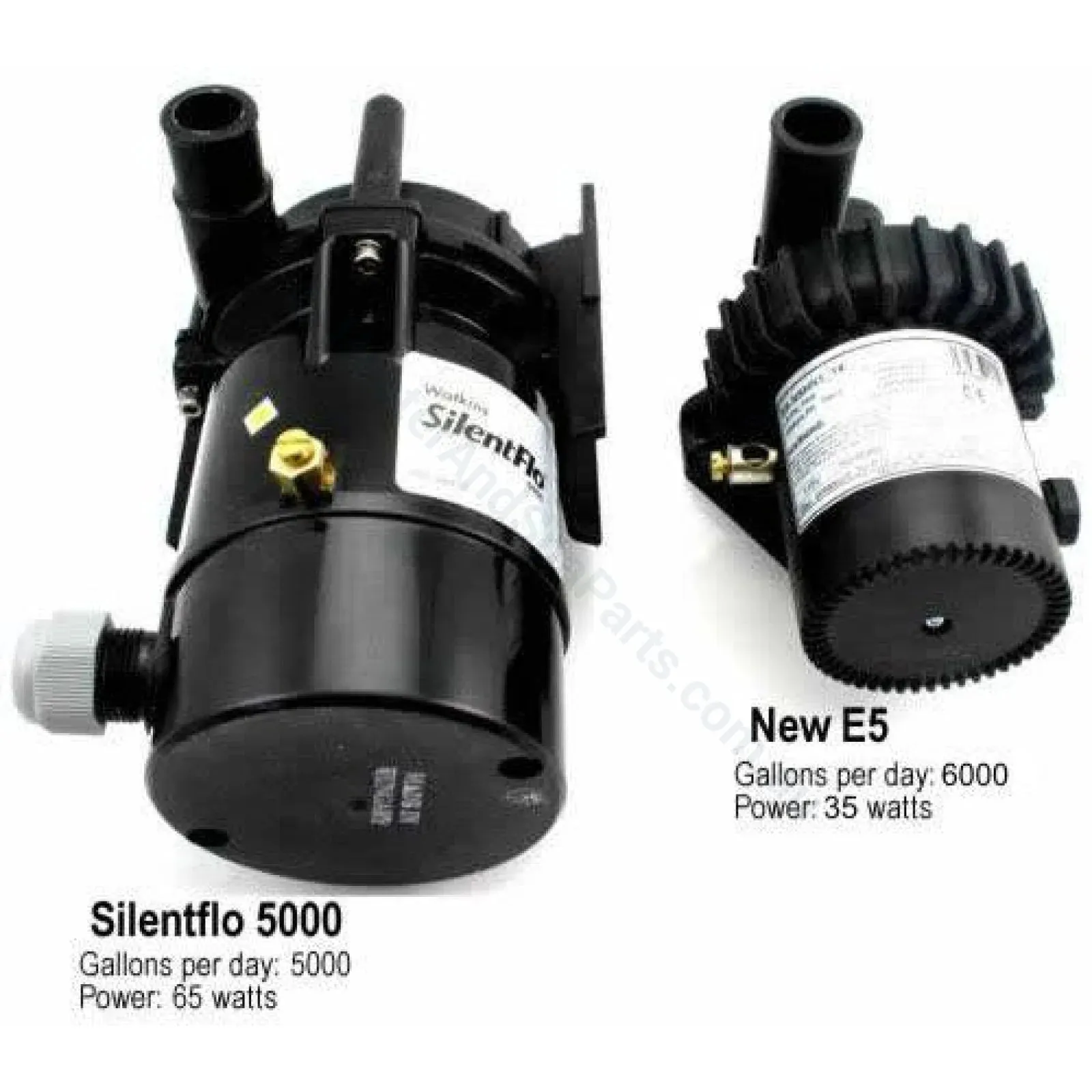

The new E5 replaces the Watkins SilentFlo® 5000 and all previous circulation pumps on all Hot Spring, Tiger River and Limelight spa models from 1986 to 2018.

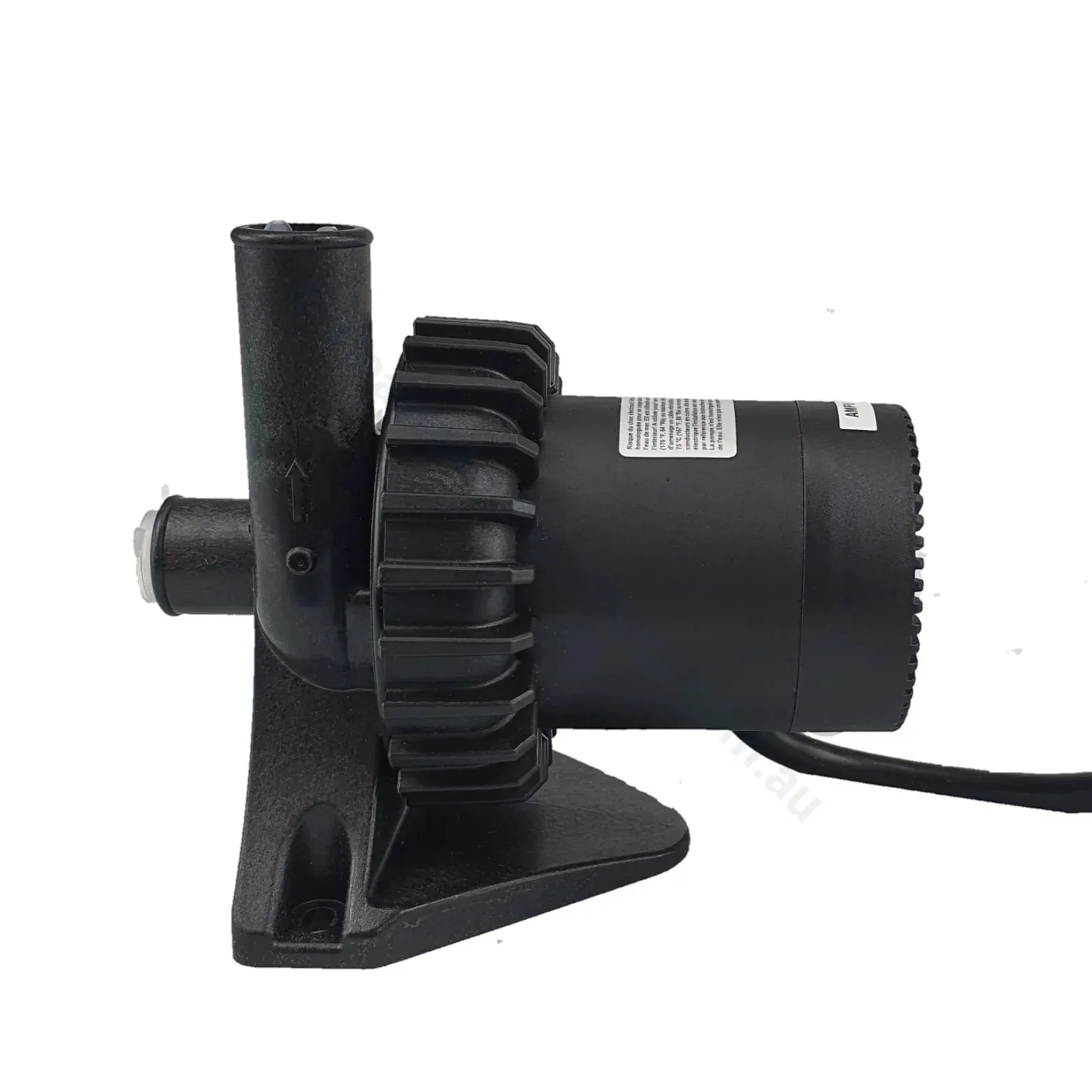

The suction is 1-11/16" from the bottom of the pump and the discharge is 4-1/4" from the bottom.
Volts: 120/240
Hz: 50/60
Watts: 40
Intake: 3/4" barb
Discharge: 3/4" barb

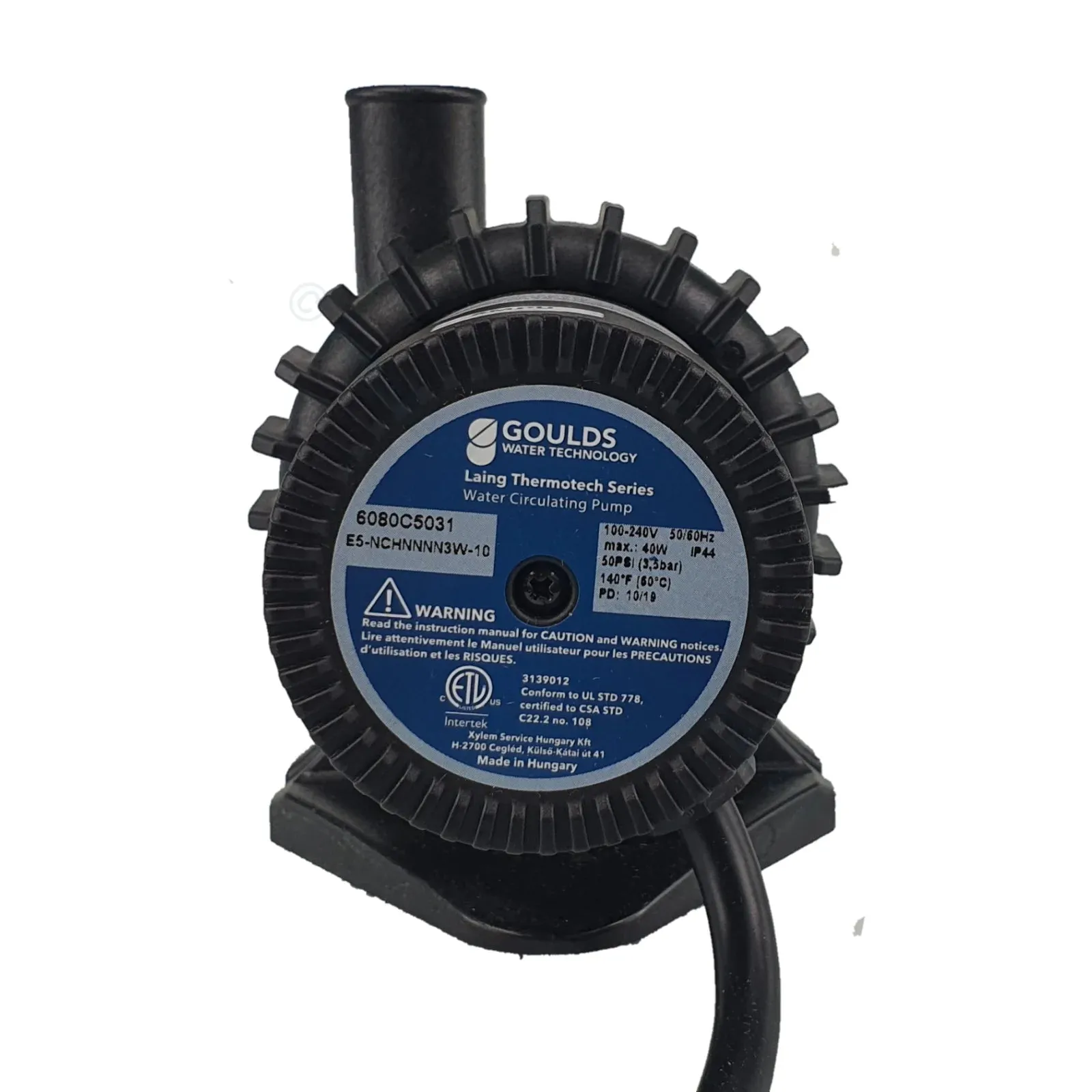

Model: E5-NCHNNNN3W-10
Replaces: PN: 34378, 73491, A-05-280-502, LTI P/N: 7060,70813, 73588, 73989, 73588, 37949, 10-0102 , 611452 , 733886902600 , 733886940602 , 74427 , 900300632 , 9026 , 9406 , E5-NSHNNN3W , LAISM303NH3/4 , LAISM303NHT , SM303NH-75 , SM303NHT, 10-0102-K, 10-0102 , 611452 , 733886902600 , 733886940602 , 74427 , 9026 , 9406 , E5-NSHNNN3W , LAISM303NH3/4 , LAISM303NHT , SM303NH-75 , SM303NHT, Watkins 74427, Watkins 74416, Hot Springs 74427, Watkins 74416, Caldera 74427, Caldera 74416, Tiger River 74427
